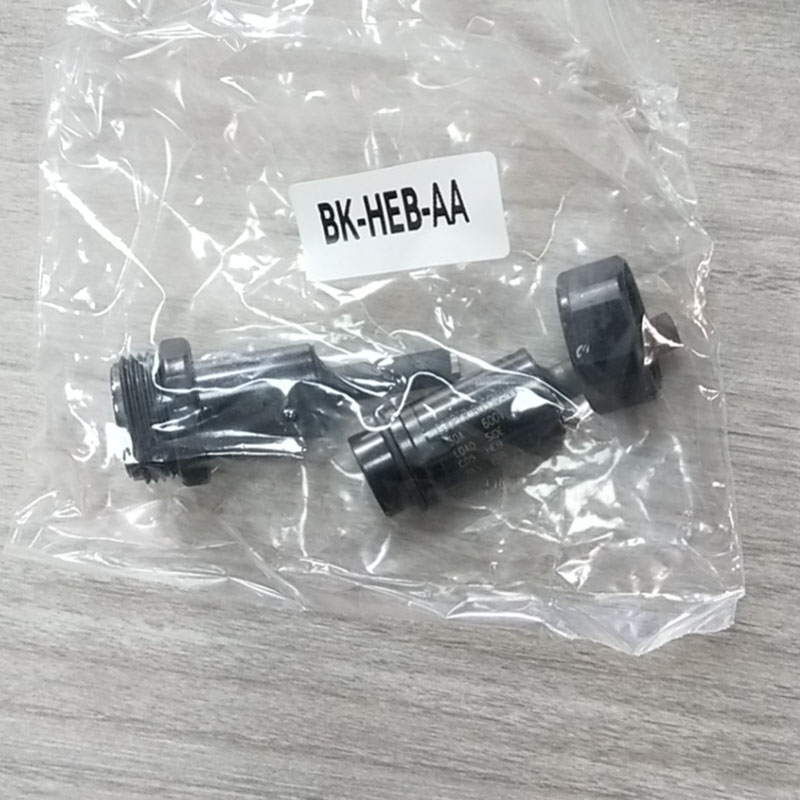

30A 600V BK-HEB-AA Bussmann Držač osigurača

Opis proizvoda:

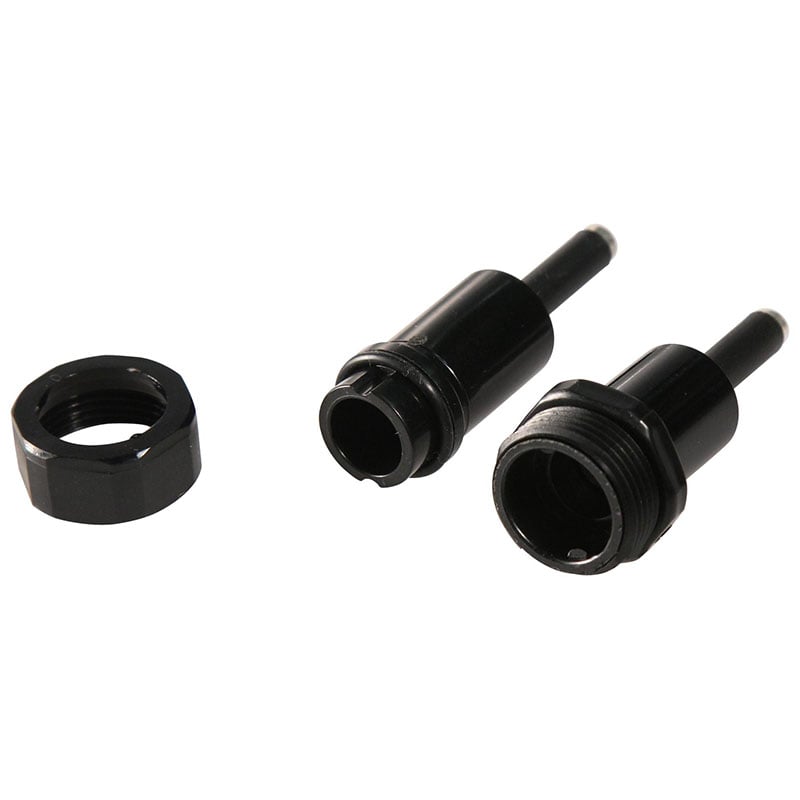

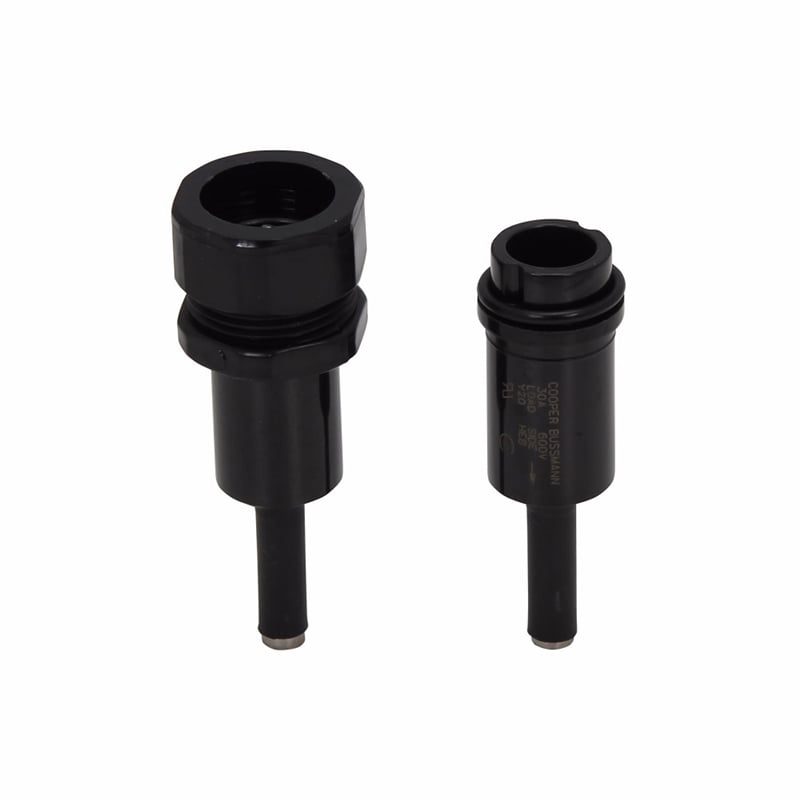

The Bussmann series of HEB submersible, single-pole in-line fuse holders for UL 13/32"x 1-1/2"(10*38mm) supplemental fuses. Dostupno u verzijama koje nisu u prekidu i otcepljenju sa nizom opcija terminala koje zadovoljavaju potrebe aplikacije. Breakaway verzije dolaze sa izolacionim čizmama koje obezbeđuju potapanost po UL IP67. Verzije koje nisu otcepljene zahtevaju naručivanje opcionalnih izolacionih čizama za potapanje.
Preporučeni osigurači

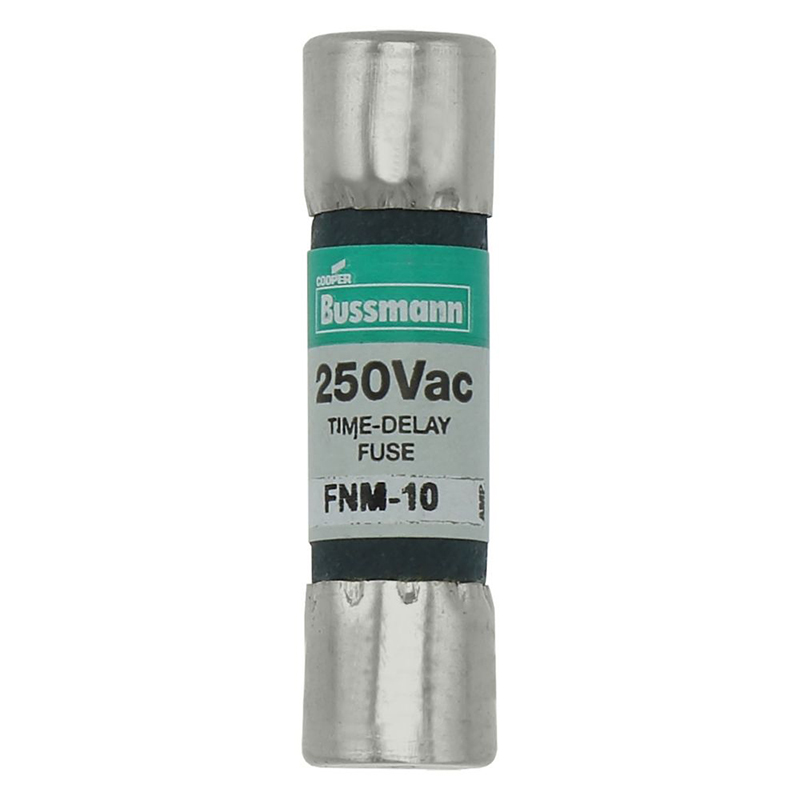

BAF, FNM, FNQ, KLM and KTK
Ocene
Volts: 600 V
Amps: up to 30 A limited by conductor size
Withstand: 200 kA RMS Sym.
Informacije o agenciji
UL Recognized, Guide IZLT2, File E14853
CSA Certified, Class 622501, File 47235
CE, RoHS compliant
Coupling Nut Torque
10-20 lb-In (1.1-2.2 N•m)
Temperatura rada i skladištenja
-40°F (-40°C) to 221°F (105°C)
Izolacione čizme

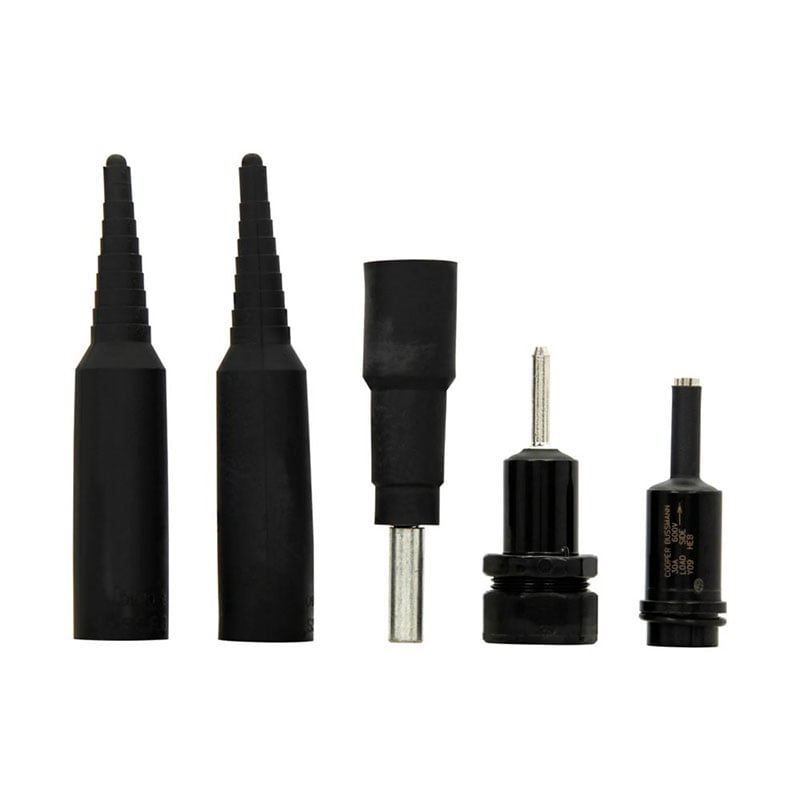

Two insulating boots come standard with the breakaway holder configurations. Insulating boots are not included as standard with non-breakaway holders. Two insulating boots must be ordered separately, if required, for each non-breakaway
holder ordered. When insulating boots are utilized, extra heat retention requires that fuses are sized at a minimum of 200% of the RMS load current.

Specifikacije proizvoda:

Većina proizvoda se pakuje u Tape and Reel prema EIA-481-1 standardu. Karton  i pena se koriste za vanserisko pakovanje za podršku međugradskom prevozu.


Delivery time: 3-10 days after payment receipt confirmed(based on actual quantity)
Packing:standard export packing, or customized packing as your request.
Professional goods shipping forwarder.

Naše glavne proizvodne linije su proizvodi za zaštitu od strujnog sklopa , kao što su osigurač, induktor magneti, Superkapacitori.
We provide service as follows:
1. Pre sales part selection guide and design.
2. Fast acting logistics service through our Hongkong and Shenzhen logistic centers.
3. After sales problem shooting service.
4. Testing and measuring service for all products sold.

1. Koji je tvoj glavni proizvod?
Our major product lines is circuit protection products ,such as fuse, inductor,Magnetics,Supercapacitors.
Mian Brend na sledeći na sledeći naитае:
Eaton Bussmann, On-Bright, Littelfuse, Aupo, Wago, Sanyou, Conquer, Sinofuse, PIP i seci.

2. Koje je vaše vreme isporuke i način?
    Except  partial products,it usually takes about 3 days after receiving payment for the hot sales.
We can ship the parts via UPS, DHL, FEDEX or any ways you preferred.

3. Koji je tvoj MOQ?
    The MOQ is 1 piece.

4. Rok plaćanja
    We can accept 100%TT in advance, Western Union, Money Gram, Paypal and etc. If  you prefer other ways, please contact us.

5.Povraćaj & Zamena
    Our Warranty is 60 days. If there is any quality problem of the goods, it could be returned within the warranty days.
    Any items must be returned in their original condition to qualify for a refund or replacement.
    Any used items can not be refunded or replaced.
    The buyer is responsible for all the shipping cost incurred.

6.Povratne informacije
     We will leave feedback once we receive your payment. Any complain will be reply in 3 work days
